Carbonated beverage air cooled water

Quantity:



Inquire Add to Basket

Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction works , Industrial Cooling Solutions
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
compressor
Condition:
NEW
Type:
Air-cooled
Place of Origin:
China
Brand Name:
Lechang
Voltage:
380V/50HZ/3PH
Dimension(L*W*H):
2300*835*1750mm
Weight:
900 KG
Warranty:
1 Year
Power:
75KW
Key Selling Points:
Competitive Price
Product name:
25HP air cooled chiller
cooling capacity:
75kw
Refrigerant:
R22/R407C/R134A/R410A
Certification:
CE
compressor:
copeland
Condenser type:
Finned copper tube+ low noise outer rotor fan
Evaporator type:
shell & tube
Fan power:
0.78KW*2
usage:
industrial refrigeration
voltage:
380V/50HZ/3PH

Product Description

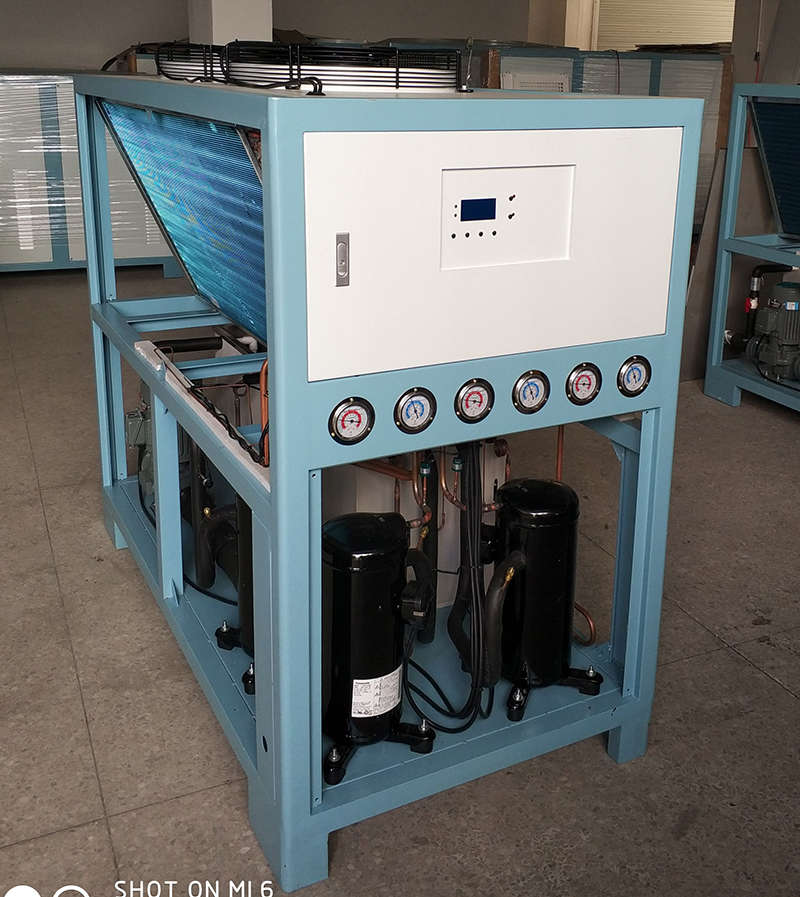

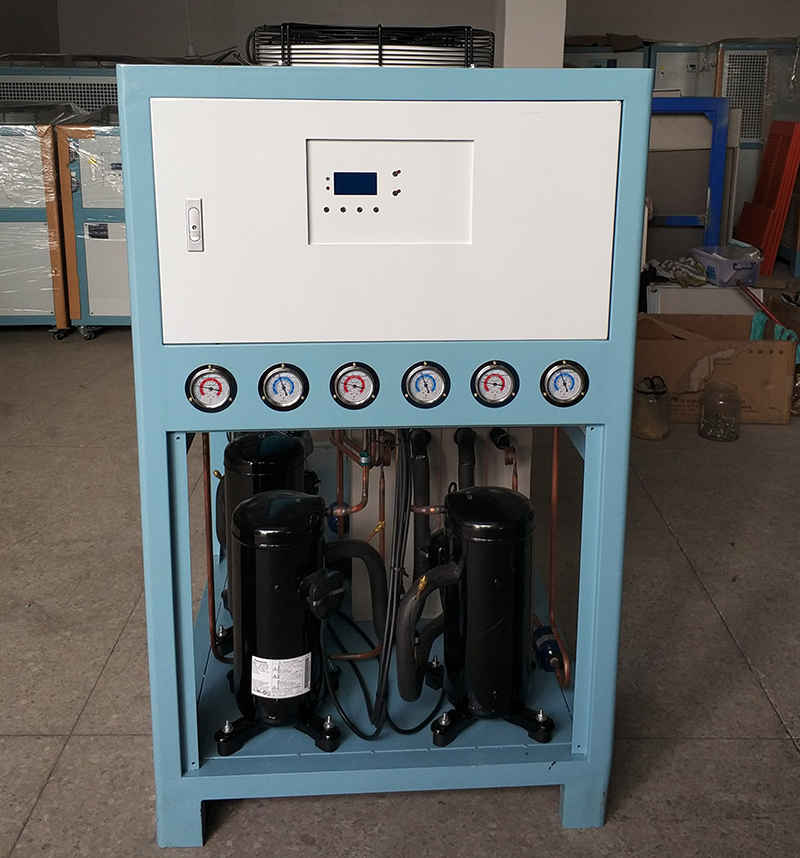

25HP Air cooled chiller

Model Item		LC-25A	Band
Power supply		380V/3PH/50HZ
Nominal cooling capacity	Kcal/h	58050
Nominal cooling capacity	kw	75
Refrigerant	Name	R22(or R407C/R404A)	Import of high quality refrigerant
Refrigerant	Control method	Thermostatic expansion valve	Import of high quality refrigerant

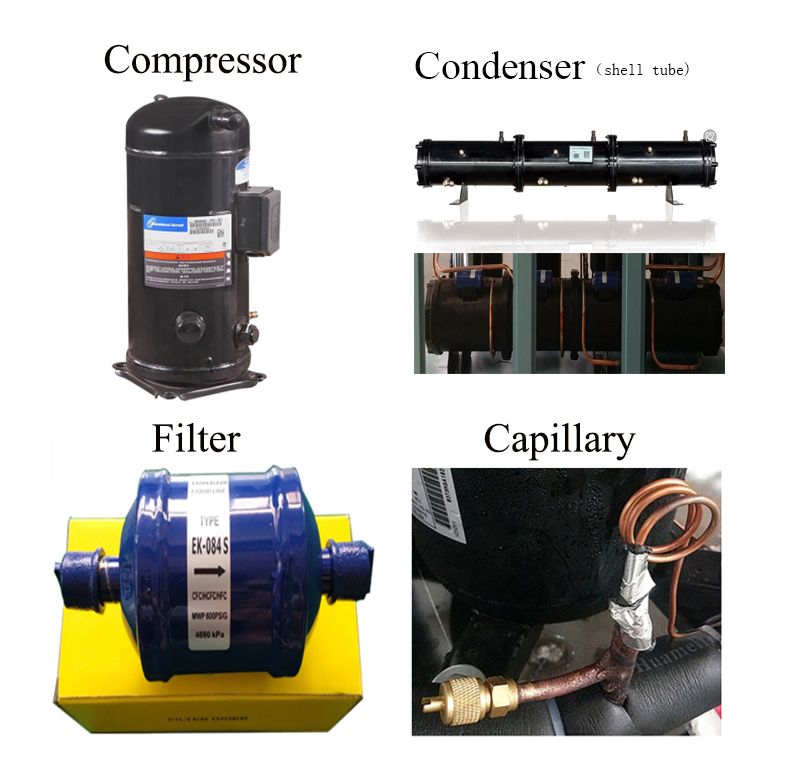

Compressor	Type	Scroll compressor	Copeland(America)
Compressor	Power(HP)	12.5*2	Copeland(America)
Condenser	Type	Finned copper tube+low noise outer rotor fan	High efficiency Finned copper tube heat exchanger
	Cooling air flow(m3/h)	27000
	Power(kw)	0.7*2
	Environment Temp(dissipate heat	≤45℃

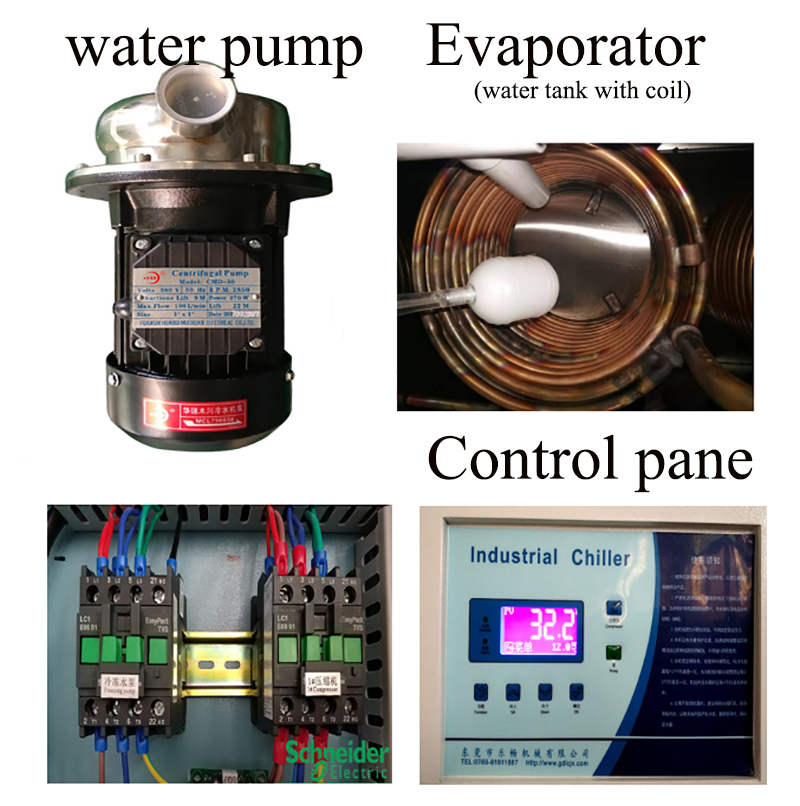

Evaporator	Type	Shell tube	Shell tube
	Chilled water flow (L/min)	360
	Inlet/out pipe caliber	21/2″
Water pump	Power(HP)	3	Muchuan
Water pump	Lift(m)	16	Muchuan
Safety protection	Control pane	Compressor overheating protection,over-current protection,high and low pressure protection,over temperature protection, flow switch protection,phase sequence or missing phase protection, exhaust overheating protection,antifreezing protection.	Punp
	High/low pressure gauge		JAVE(Taiwan)
	Filter		ALCO(America)
	Relay		Schneider(France)
	Contactor		Schneider(France)
	Power switch		Chint
Dimension	weight(kg)	900	Wooden case
Dimension	LxWxH(mm)	23008351750
	Surface treatment	Mainboard :2mm, closingboard: 1.5mm	Baking varnish

Remark:

1.The cooling capacity is based on: chilled water inlet and outlet water temperature 12 ° C / 7 ° C, cooling inlet and outlet water temperature 30 ° C / 35 ° C

2.range of work:Chilled water(Temp range):5℃-35℃;inlet and outlet water(temp range) :3℃-8℃.working environment: ≤35℃(condensation Temp)
