Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction works
None
Provided
Provided
Hot Product 2019
1 Year
compressor
NEW
Air-cooled
Guangdong, China
Lechang
380V/50HZ/3PH
1680*830*1670mm
650 KG
1 Year
45KW
Sustainable
15HP air cooled chiller
45kw
R22/R407C/R134A/R410A
ALCO
Copeland Scroll Compressor
Finned copper tube+ low noise outer rotor fan
Tank
Blue + White
industrial refrigeration
380V/50HZ/3PH
15HP Air cooled chiller
| Model
Item | LC-15A |
Band | |
| Power supply | 380V/3PH/50HZ |
| |
| Nominal cooling capacity | Kcal/h | 38565 |
|
| kw | 45 |
| |
| Refrigerant | Name | R22(or R407C/R404A) | Import of high quality refrigerant
|
|
| Control method | capillary | |
| Compressor
| Type | Scroll compressor | Copeland(America)
|
| Power(HP) | 5*3 | ||
|
Condenser
| Type | Finned copper tube+low noise outer rotor fan | High efficiency Finned copper tube heat exchanger
|
| Cooling air flow(m3/h) | 15240 | ||
| power(kw) | 0.38*2 | ||
| Environment Temp(dissipate heat | ≤45℃ | ||
| Evaporator
| Type | Water tank with coil | Water tank with coil
|
| Chilled water flow (L/min) | 360 | ||
| Thank volume(L) | 200 | ||
| Inlet/out pipe caliber | 2″ | ||
| Water pump | Power(HP) | 2 | Muchuan
|
| Lift(m) | 15 | ||
|
Safety protection
| Control pane | Compressor overheating protection,over-current protection,high and low pressure protection,over temperature protection, flow switch protection,phase sequence or missing phase protection, exhaust overheating protection,antifreezing protection.
| Punp |
| High/low pressure gauge | JAVE(Taiwan) | ||
| Filter | ALCO(America) | ||
| Relay | Schneider(France) | ||
| Contactor | Schneider(France) | ||
| Power switch | Chint | ||
| Dimension
| weight(kg) | 650 | Wooden case |
| LxWxH(mm) | 1680*830*1670 |
| |
|
| Surface treatment | Mainboard :2mm, closingboard: 1.5mm | Baking varnish |
1.The cooling capacity is based on: chilled water inlet and outlet water temperature 12 ° C / 7 ° C, cooling inlet and outlet water temperature 30 ° C / 35 ° C
Remark:
2.range of work:Chilled water(Temp range):5℃-35℃;inlet and outlet water(temp range) :3℃-8℃.working environment: ≤35℃(condensation Temp)
3.Conversion of units:1kw cooling capacity=860kcal/hr
1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW

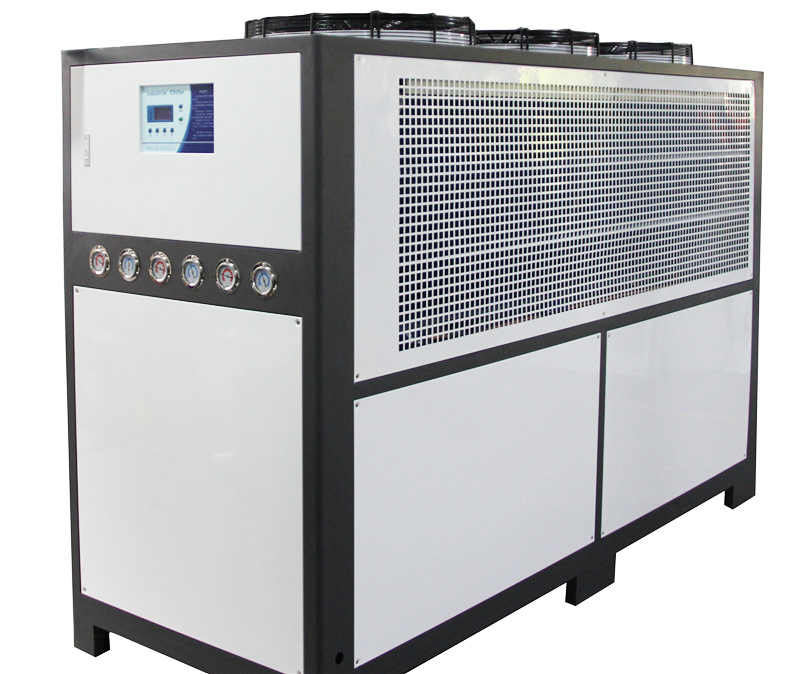

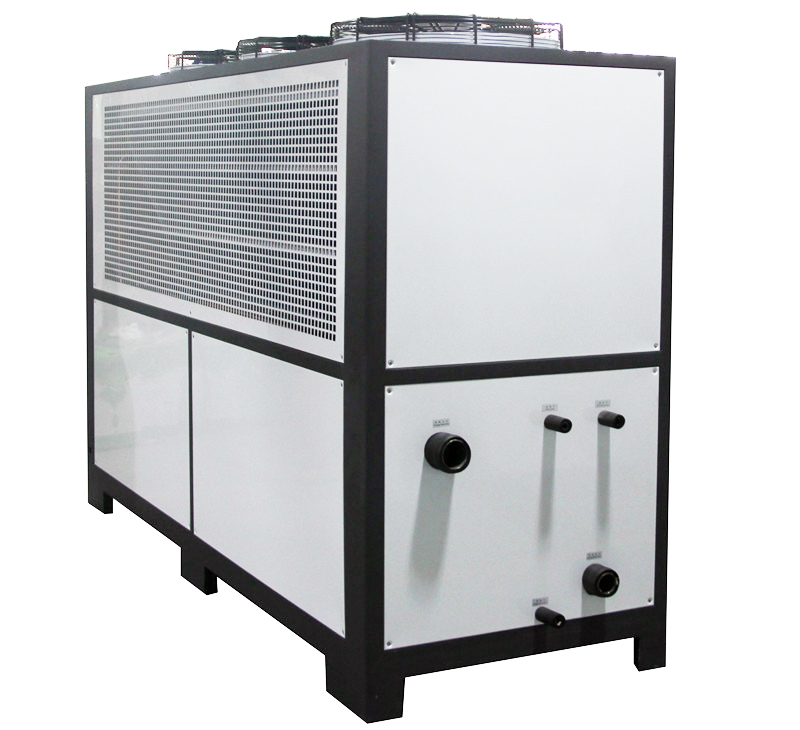

PRODUCT PICTURES
