Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction works , Industrial Cooling Solutions
None
Provided
Provided
Hot Product 2019
1 Year
compressor
new
Water-cooled
China
LECH
380V/50HZ/3Phase
3000*900*1750mm
1450 KG
1 Year
231
Easy to Operate
screw chiller
231KW
R22(or R407C/R404A)
HANBELL Semi-hermetic Screw
Shell Tube Condenser
Shell Tube
ALCO
Industrial Cooling Solutions
380V/50hz/3p
ChiIler
70HP SCREW COOLED CHILLER
| Model
Item | LC-70WS |
Band | |
| Power supply | 380V/3PH/50HZ |
| |
| Nominal cooling capacity
| Kcal/h | 199000 |
|
| KW | 231 |
| |
| USRT | 66 |
| |
| Refrigerant
| Name | R22(or R407C/R404A) | Import of high quality refrigerant
|
| Refrigeration circuit | 1 | ||
| Throttling device | Control method | Thermostatic expansion valve |
|
| Compressor
| Type | Semi-hermetic Screw | Hanbell(Taiwan)
|
| Starting |
| ||
| Energy control | 25%-50%-75%-100% | ||
| Input power(kw) | 48.5 | ||
| Rated current(A) | 86 | ||
|
Condenser
| Type | Shell tube | High efficiency external thread copper pipe shell and tube type
|
| Water flow(m3/h) | 48.1 | ||
| Pressure loss(kpa) | 45 | ||
| Pipe specification(PT) | 3″ | ||
| Evaporator
| Type | Shell tube | High efficiency internal thread copper pipe shell and tube type
|
| Water flow(m3/h) | 39.7 | ||
| Pressure loss(kpa) | 60 | ||
| Pipe specification(PT) | 3″ | ||
| Safety device | Overload protection.high and low pressure protection.exhaust overheating protection.antifreeze protection.power inverse phase protection.hydraulic protection. | JAVE(Taiwan).ALCO (America).Schneider (France).Chint | |
| dB(A) | 60.2 | ||
| Dimension | LxWxH(mm) | 3000*900*1750 | Wooden case |
| Machine weight(kg) | 1450 | ||
| Operating weight(kg) | 1650 | ||
Remark:
1.The capacity is according to the following parameters: ambient temperature:35 ° inlet/outlet chilled water temperature 12 ° C / 7 °
2.The specifications above are subject to change without notice.
3.Conversion of units:1kw cooling capacity=860kcal/hr
1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW

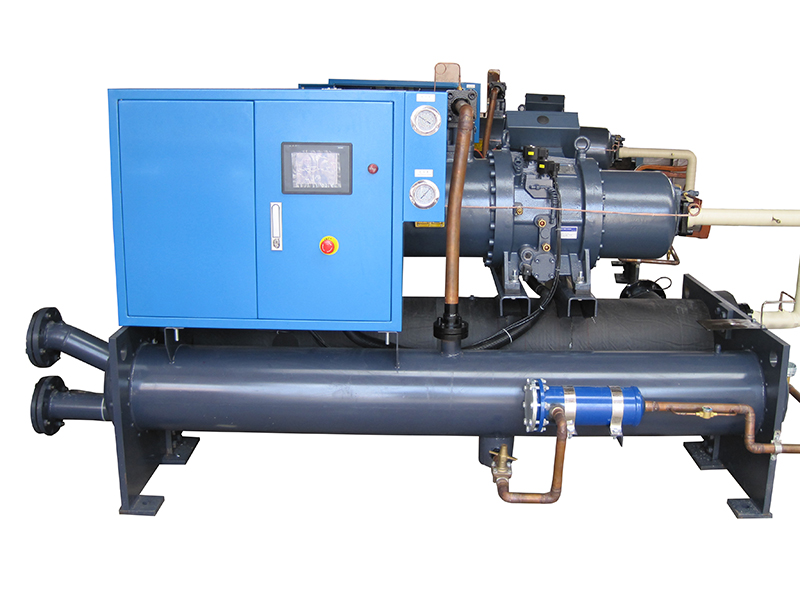

MACHINE PICTURES
OUR FACTORY
OUR CERTIFICATE
FAQ
Q1:Are you a factory or trading company?
A:We are a factory and manufacturer specialized in cooled chiller more than 20 years, we provide wide range of industrial chillers available to suit any cooling need.
Q2:What's warranty and after-sale service of machine?
A:Twelve months Warranty for main machinery part like motor and electric;
Life-long maintenance service(Email and calling service in working hours)
Q3: How to install and run the machine?
A: Our technician have installed the machine before shipping.
Q4: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
· Our products manufactured strictly according to national and international standard.
· We have CE, ISO certification.
· We take a test on every product before shipping.
Q6:Whether the product can be customized?
· We can make products according to customer's requirements.
Q7:Don't know which type you need?
A:Please send us your requirement or contact us directly!
Q8:Don't know how the machine working?
A:Contact us to see the video and get further information!
