Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction works , Industrial Cooling Solutions
None
Provided
Provided
Hot Product 2019
1 Year
compressor
New100%
Water-cooled
China
Lechang
3PH 380V
2100*1050*1650
880 KG
1 Year
120kw
Easy to Operate
Laser Water Chiller
120KW
R22(or R407C/R404A)
Copeland Scroll Compressor
Shell Tube Condenser
Shell Tube
ALCO
Industrial Cooling Solutions
380V/50hz/3p
ChiIler
40HP water cooled chiller
| Model
Item | LC-40W |
Band | |
| Power supply | 380V/3PH/50HZ |
| |
| Nominal cooling capacity
| Kcal/h | 102840 |
|
| kw | 120 |
| |
| Refrigerant
| Name | R22(or R407C/R404A) | Import of high quality refrigerant
|
| Control method | Thermostatic expansion valve | ||
| Compressor
| Type | Scroll compressor | Copeland(America)
|
| Power(HP) | 10*4 | ||
|
Condenser
| Type | Shell tube | High efficiency Shell tube condenser
|
| Inlet and outlet pipe diameter(PT) | 2.5″x2 | ||
| Environment water Temp(dissipate heat) | ≤35℃ | ||
| Evaporator
| Type | Shell tube | Shell tube |
| Chilled water flow (L/min) | 420 |
| |
| Inlet/out pipe(PT)r | 2.5″x2 |
| |
| Water pump
| Power(HP) | 5 | Muchuan
|
| Lift(m) | 19 | ||
|
Safety protection
| Control pane | Compressor overheating protection,over-current protection,high and low pressure protection,over temperature protection, flow switch protection,phase sequence or missing phase protection, exhaust overheating protection,antifreezing protection.
| Punp |
| High/low pressure gauge | JAVE(Taiwan) | ||
| Filter | ALCO(America) | ||
| Relay | Schneider(France) | ||
| Contactor | Schneider(France) | ||
| Power switch | Chint | ||
| Dimension
| weight(kg) | 880 | Wooden case |
| LxWxH(mm) | 2100*1050*1650 |
| |
|
| Surface treatment | Mainboard :2mm, closingboard: 1.5mm | Baking varnish |
1.The cooling capacity is based on: chilled water inlet and outlet water temperature 12 ° C / 7 ° C, cooling inlet and outlet water temperature 30 ° C / 35 ° CRemark:
2.range of work:Chilled water(Temp range):5℃-45℃;inlet and outlet water(temp range) :3℃-8℃.working environment: ≤35℃(condensation Temp)
3.Conversion of units:1kw cooling capacity=860kcal/hr
1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW

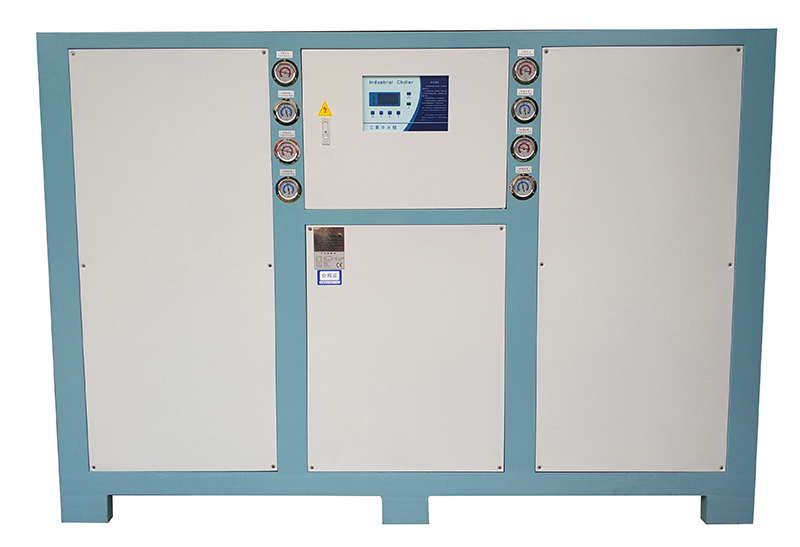

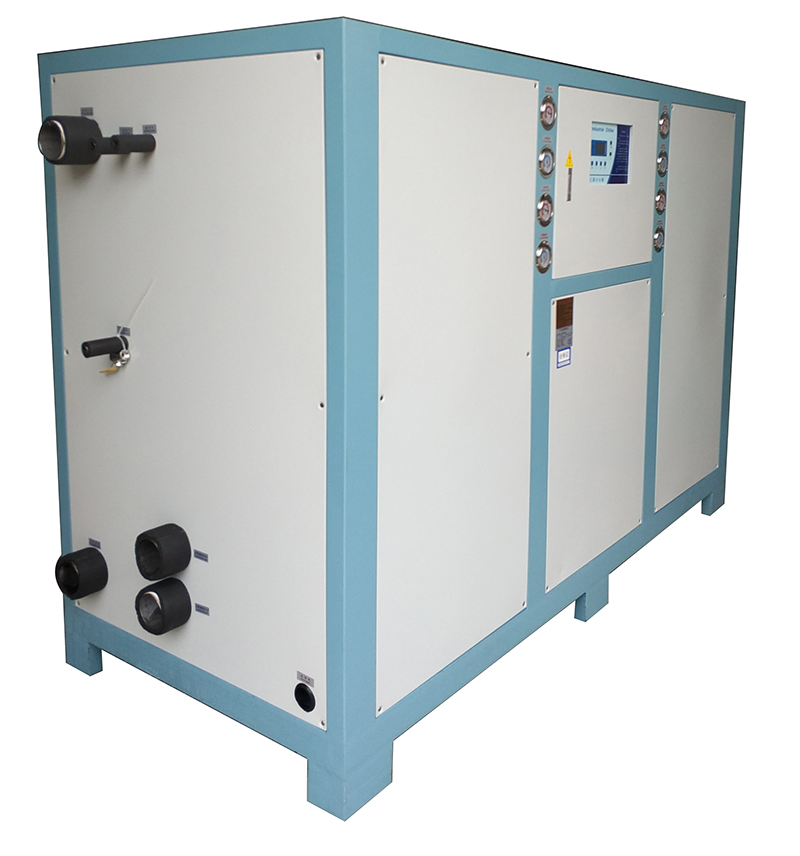

MACHINE PICTURES

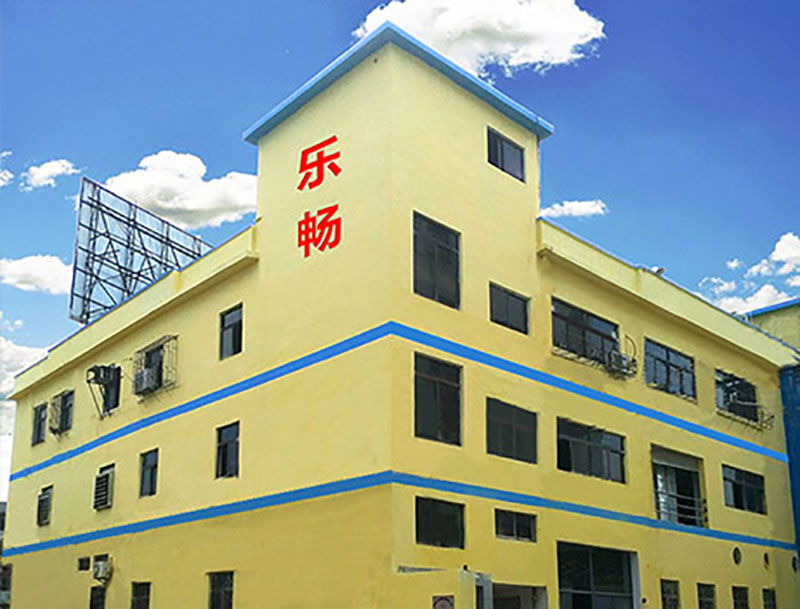

OUR FACTORY
OUR CERTIFICATE
