Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction works , Industrial Cooling Solutions
None
Provided
Provided
Hot Product 2019
1 Year
compressor
new
Water-cooled
Guangdong, China
LECH
380V/50HZ/3Phase
3000*1000*1800mm
1750 KG
1 Year
312
Easy to Operate
screw chiller
330KW
R22(or R407C/R404A)
HANBELL Semi-hermetic Screw
Shell Tube Condenser
Shell Tube
ALCO
Industrial Cooling Solutions
380V/50hz/3p
100HP SCREW COOLED CHILLER
| Model
Item | LC-100WS |
Band | |
| Power supply | 380V/3PH/50HZ |
| |
| Nominal cooling capacity
| Kcal/h | 284000 |
|
| KW | 330 |
| |
| USRT | 94 |
| |
| Refrigerant
| Name | R22(or R407C/R404A) | Import of high quality refrigerant
|
| Refrigeration circuit | 1 | ||
| Throttling device | Control method | Thermostatic expansion valve |
|
| Compressor
| Type | Semi-hermetic Screw | Hanbell(Taiwan) |
| Starting |
|
| |
| Energy control | 25%-50%-75%-100% |
| |
| Input power(kw) | 66.3 |
| |
| Rated current(A) | 111 |
| |
|
Condenser
| Type | Shell tube |
High efficiency external thread copper pipe shell and tube type
|
| Water flow(m3/h) | 68.2 | ||
| Pressure loss(kpa) | 50 | ||
| Pipe specification(PT) | 4″ | ||
| Evaporator
| Type | Shell tube | High efficiency internal thread copper pipe shell and tube type
|
| Water flow(m3/h) | 56.7 | ||
| Pressure loss(kpa) | 65 | ||
| Pipe specification(PT) | 4″ | ||
| Safety device | Overload protection.high and low pressure protection.exhaust overheating protection.antifreeze protection.power inverse phase protection.hydraulic protection. | JAVE(Taiwan).ALCO(America). Schneider(France).Chint | |
| dB(A) | 60.8 | ||
| Dimension | LxWxH(mm) | 3000*1000*1800 | Wooden case |
| Machine weight(kg) | 1750 | ||
| Operating weight(kg) | 1950 | ||
Remark:
1.The capacity is according to the following parameters: ambient temperature:35 ° inlet/outlet chilled water temperature 12 ° C / 7 ° C
2.The specifications above are subject to change without notice.
3.Conversion of units:1kw cooling capacity=860kcal/hr
1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW
MACHINE PICTURES
OUR FACTORY

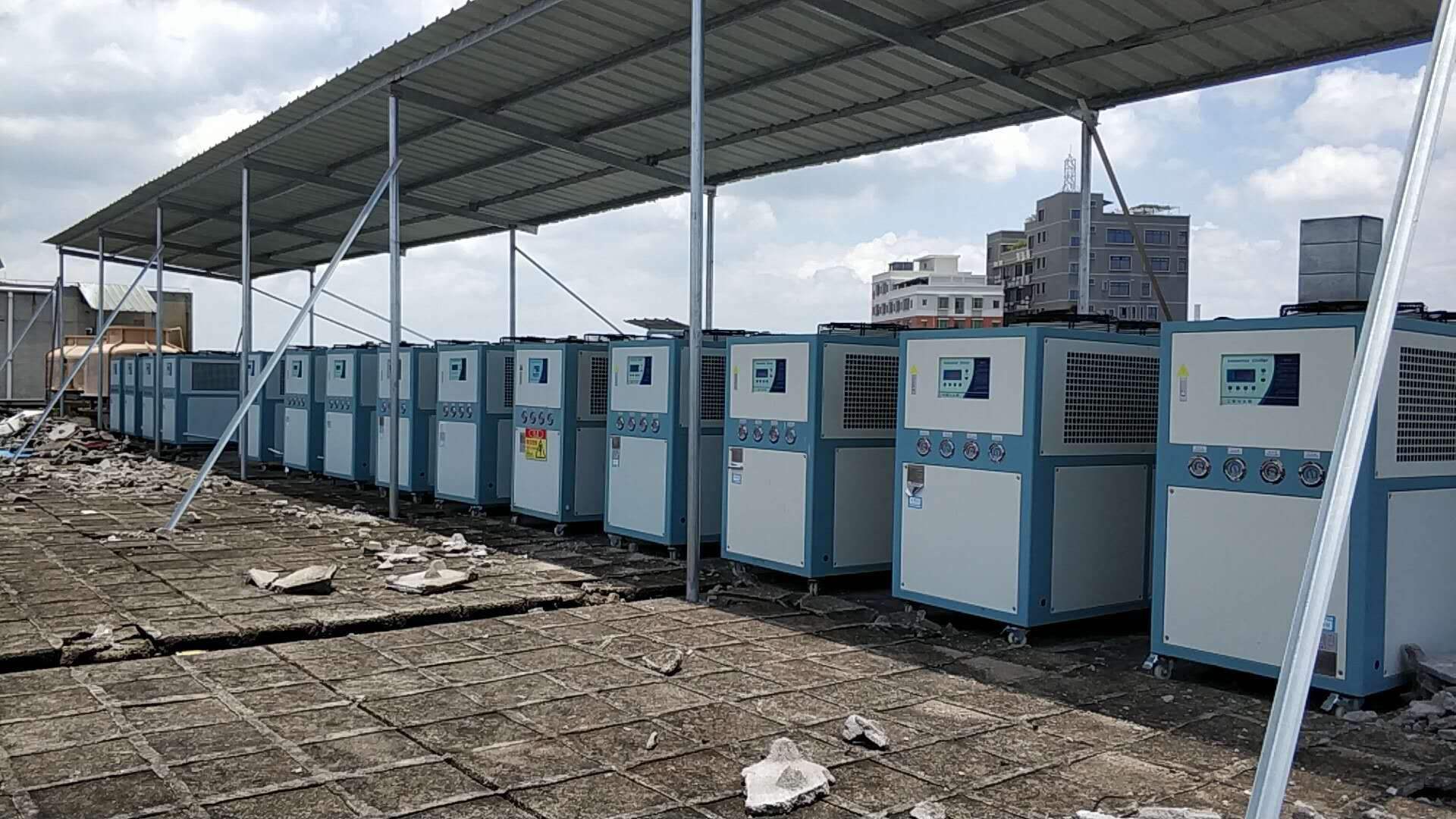

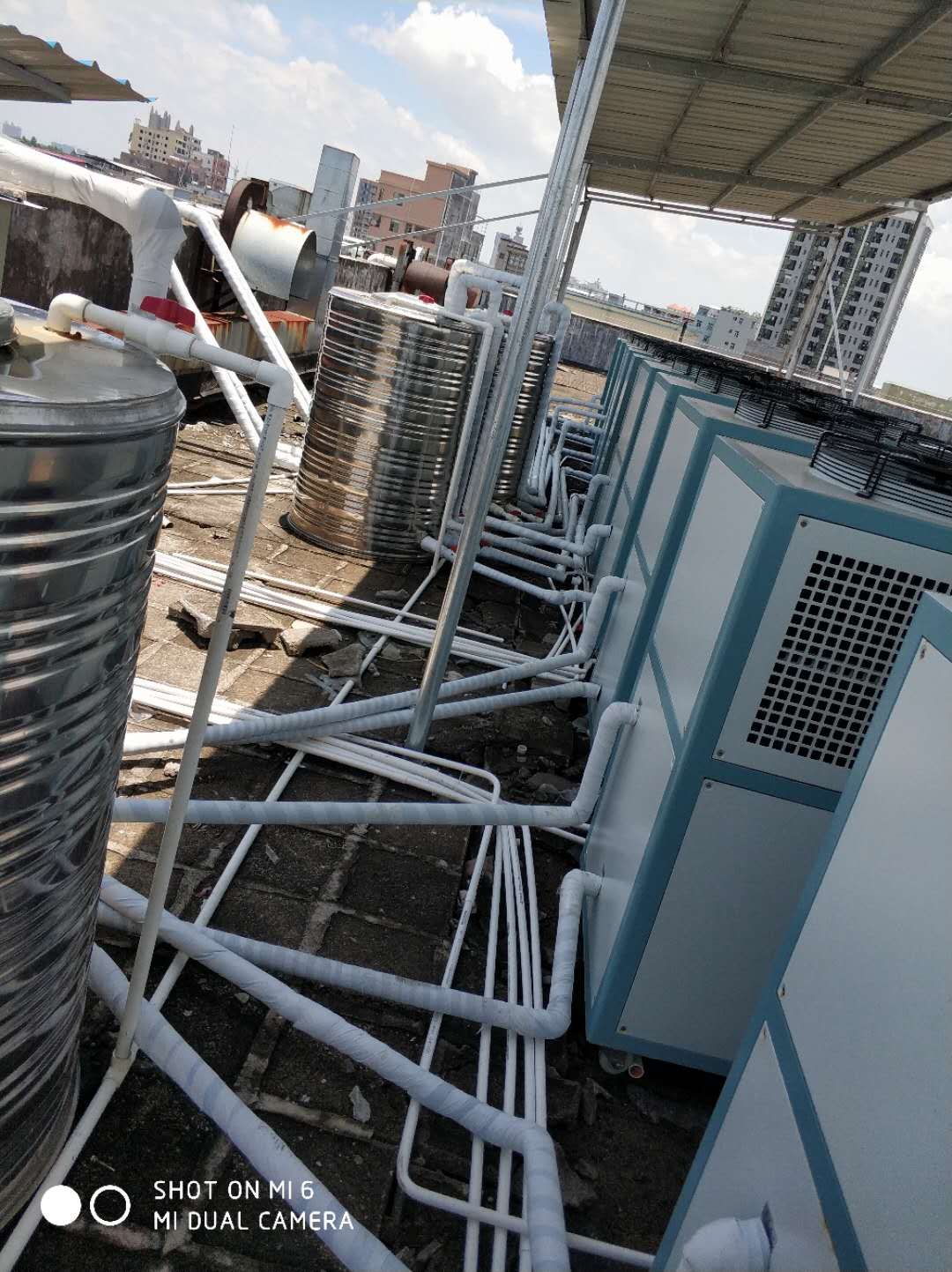

SUCCESS CASES
OUR CERTIFICATE
